Kicker Accessories

Pedal

We used to purchase our pedal assemblies from a supplier, these assemblies were prone to break, due to being made out of shit metal. So after receiving many death threats, we designed and tooled our own pedal.

Spindles
The kicker pedal spindle takes all of the shock and load from kick starting your motorcycle. These spindles are prone for breaking over time from all the abuse. The BAKER Spindle is made out of Pre-heat treaded 4140 then to ensure longevity and resistance to rust we dip them in a bath of hard chrome plate.

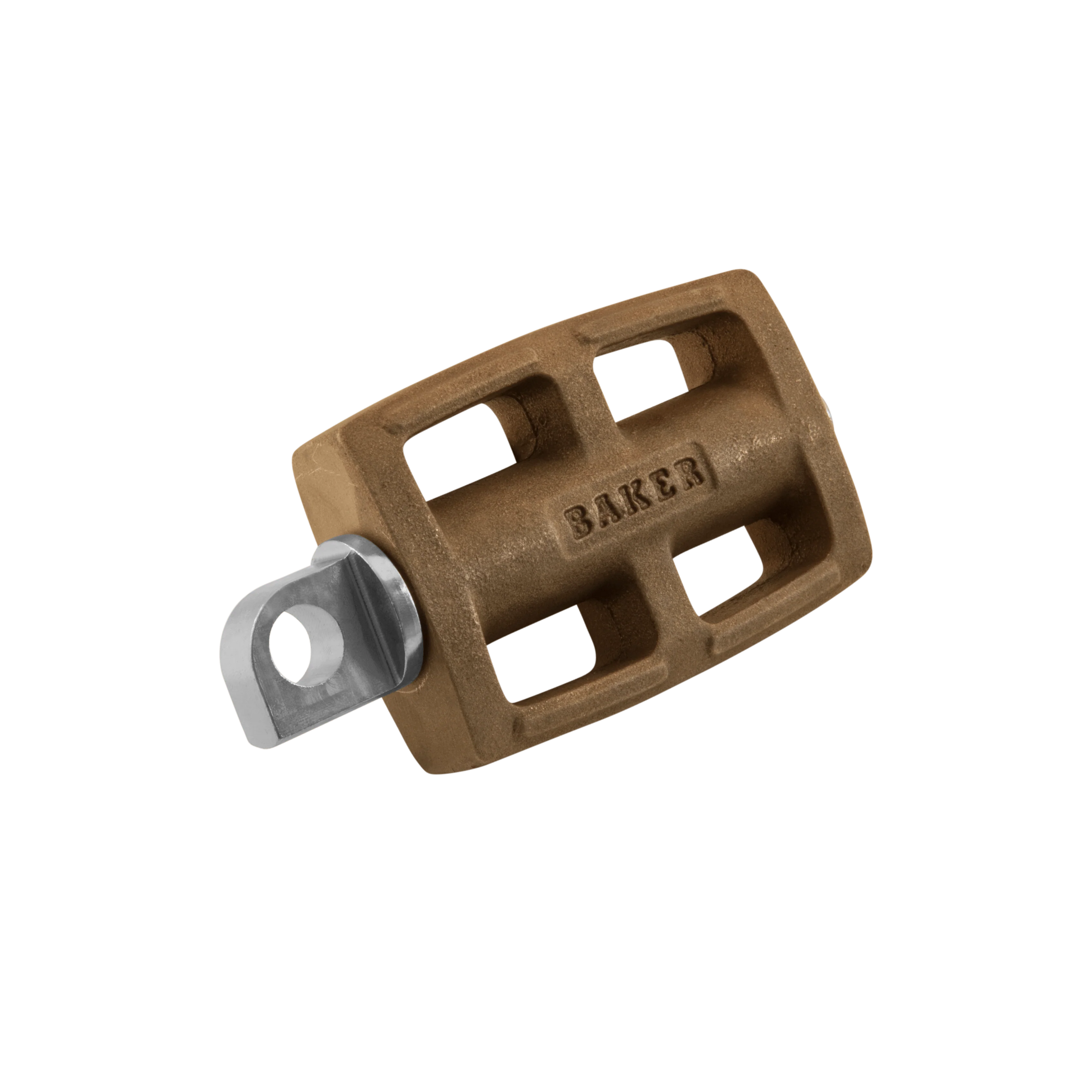

Pedal
Our pedal is cast out of 876 bronze, machined to specs then put through a blast machine where the part is hit with steel bead shot, work hardening the part and giving it that unique look.

Fitment
Pedal assemblies fit all 1936-86 4 Speed style kicker arms and BAKER’s kicker arms.

Bronze Pedal Assembly with 5/8″ Spindle (PN 352-64-A)

Straight Arm

When we first started producing the 6-into-4, we purchased our pedal and kick arm from a supplier but there were problems, because the 6-into-4 sticks out an extra 1.6” (compared to 4-speeds) and no elbow is required. We tooled a straight kick arm and made the cross section twice as thick, the straight arm provided a more positive kicking motion.

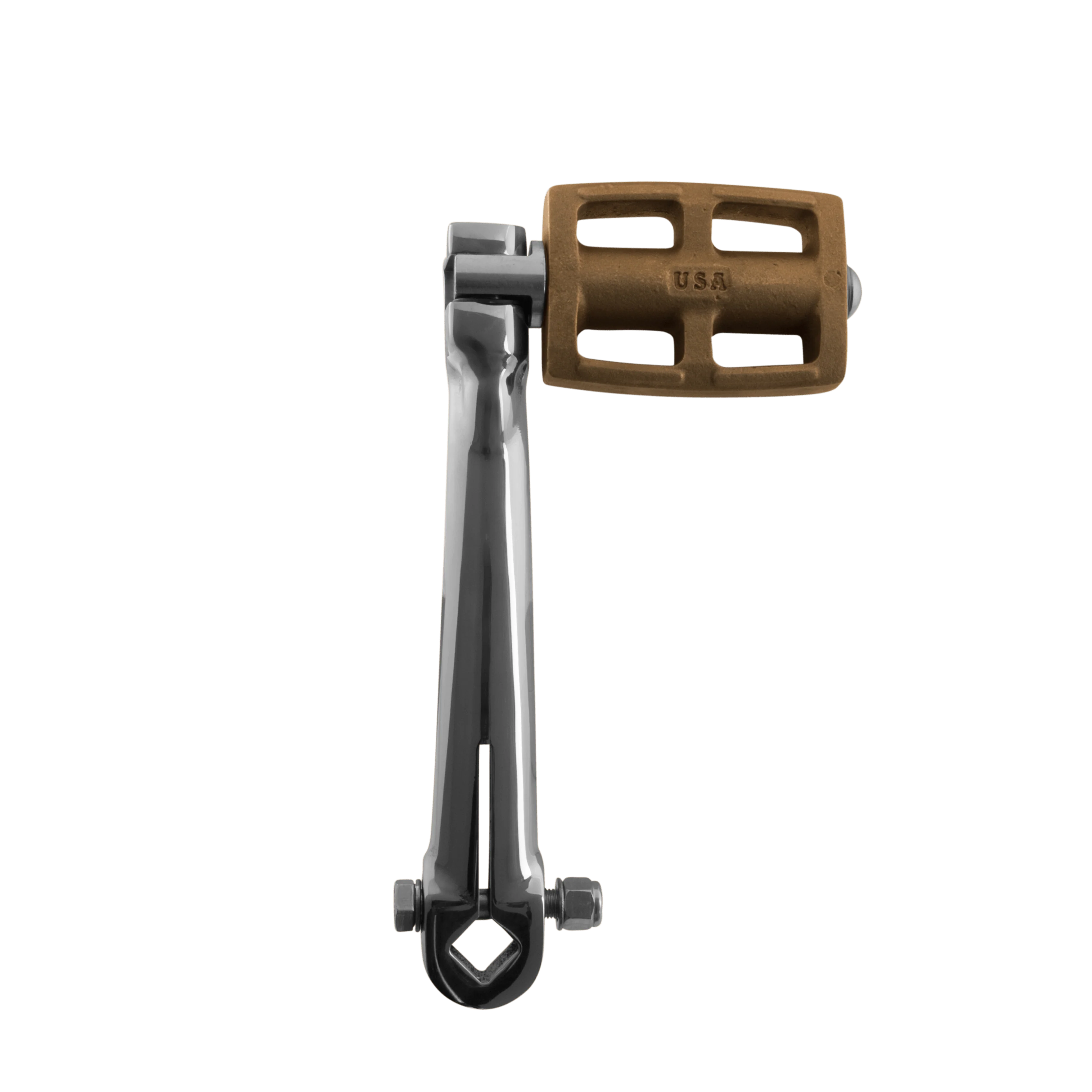

Straight Kicker Arm

Kick Arm
The straight arm is cast out of 304 Stainless Steel, machined and polished to perfection. The arm features all stainless steel fasteners and flush mount for the pedal assembly.



Options
Arm comes polished with BAKER Kicker Pedal assembly or without.



PN	Description	Fitment
35102-64-A	Kick arm, standard length, Stainless steel, polished	1936-86 4 Speeds, BAKER 4 Speed, and BAKER 6into4
351002-64-A	Kick arm and pedal assembly, standard length	1936-86 4 Speeds, BAKER 4 Speed, and BAKER 6into4



Note
If installing a straight arm onto a 4 Speed transmission, make sure that you have enough clearance between the arm and exhaust system.
