Hydraulic Side Cover

'87-'06 Fitment

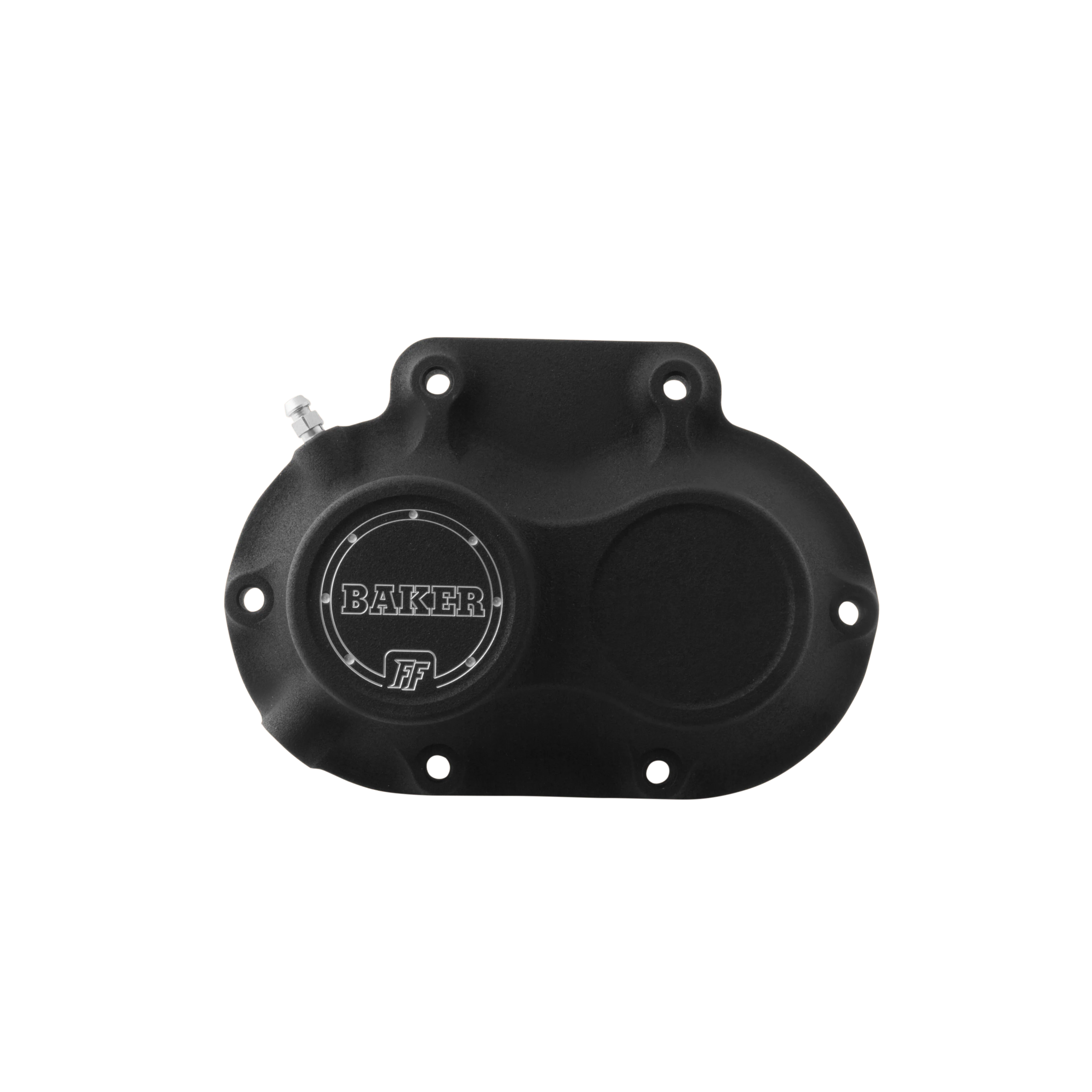

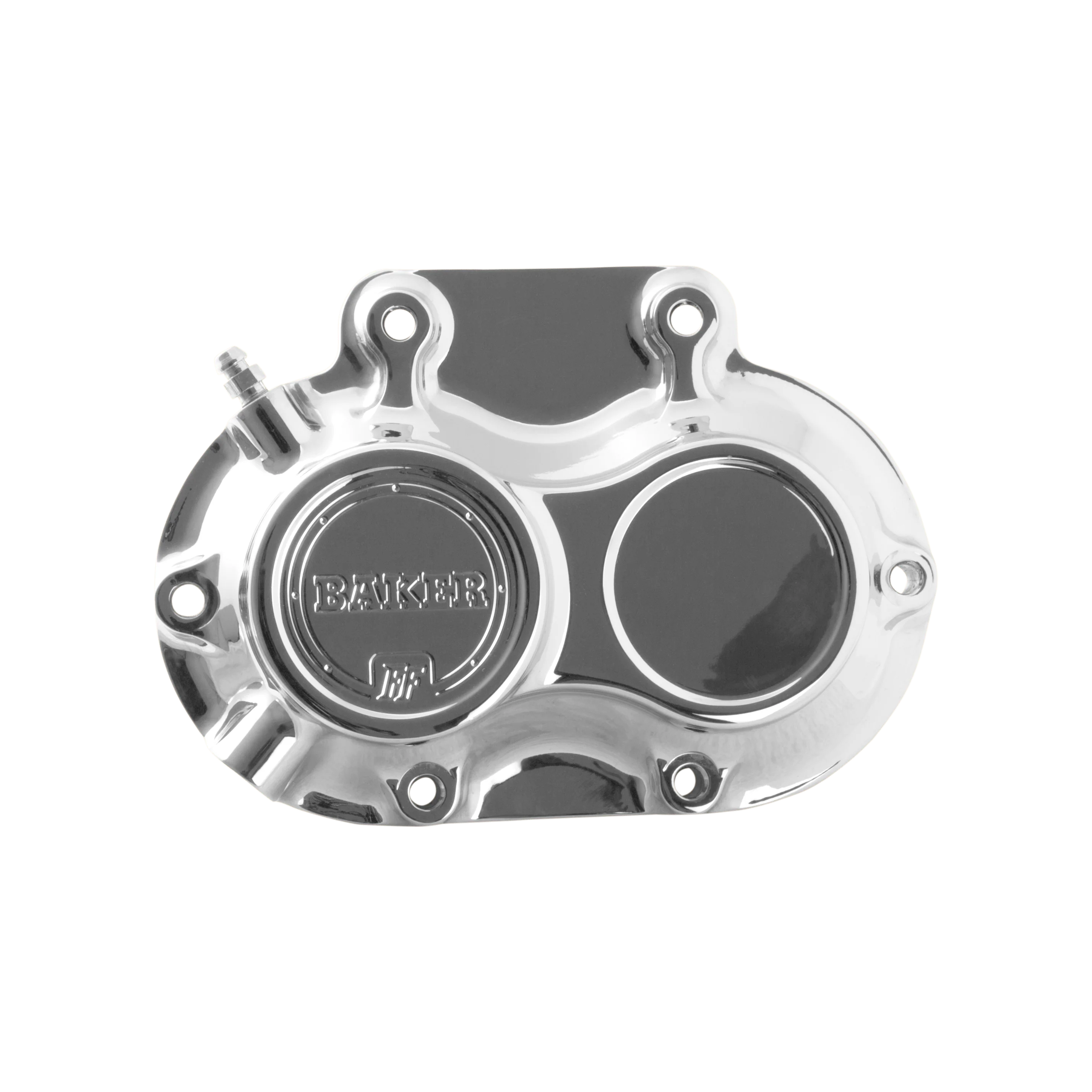

Function-Formed 5-Speed Hydraulic Side Covers Are Back! We’ve officially resurrected the original Function-Formed (FF) Hydraulic Side Covers for stock 5-Speed and BAKER transmissions. The Hydraulic Side Covers was one of the first parts in the FF product line. We took away all the ‘fat’ of the standard aftermarket side cover and left the function. The true art of any mechanical part is the function. The parts that make it happen, that do the work and yield the results. We sucked the side cover up to the bearing door as much as possible by utilizing aerospace-derived hydraulic ball plugs, that enabled the bleeder screw and feed line ports to be right next to the gasket surface. We even put the conventional transmission dipstick on a diet. Precision-machined from 6061-T6 billet right here in our Haslett, Michigan, machine shop, these side covers are as strong as they are sleek.  The result is the tidiest design possible, yielding the strength necessary to get the job done, and a smooth surface finish to match.



Features

• Machined 6061-T6 Side Covers tuck tighter to the transmission than the stock cable-style side covers
• Compact hydraulic line routing enabling the banjo fitting to be on the front of the transmission
• Compatible with Stock H-D 5 Speeds, BAKER OD6, DD6, DD5 Transmissions or any other transmission that uses a stock equivalent mechanical cable-style side cover
• System designed to offer the same amount of adjustability at the hand control and engagement point as the stock mechanical clutch cable

Technical

• Compactly designed and packaged dipstick sneaks into the side cover assembly. Yields the standard functionality, while maintaining as small a footprint as possible
• Utilizes the stock mechanical center rod assembly. Enabling the adjustment you want at the clutch lever, as well as being compatible with all types of clutches available on the market
• Steel 1.5″ diameter piston rides on high-grade .125″ thick Buna N O-Rings. Delivers the smooth engagement throughout the stroke of the lever, as well as the durability against the transmission fluid and silicone-based brake fluid used in today’s hydraulic clutch systems
• By using 5/32″ diameter stainless steel, aerospace-derived, ball plugs in conjunction with some crafty precision machining, the fluid can be routed to the outside of the piston, while the banjo fitting remains right near the gasket surface

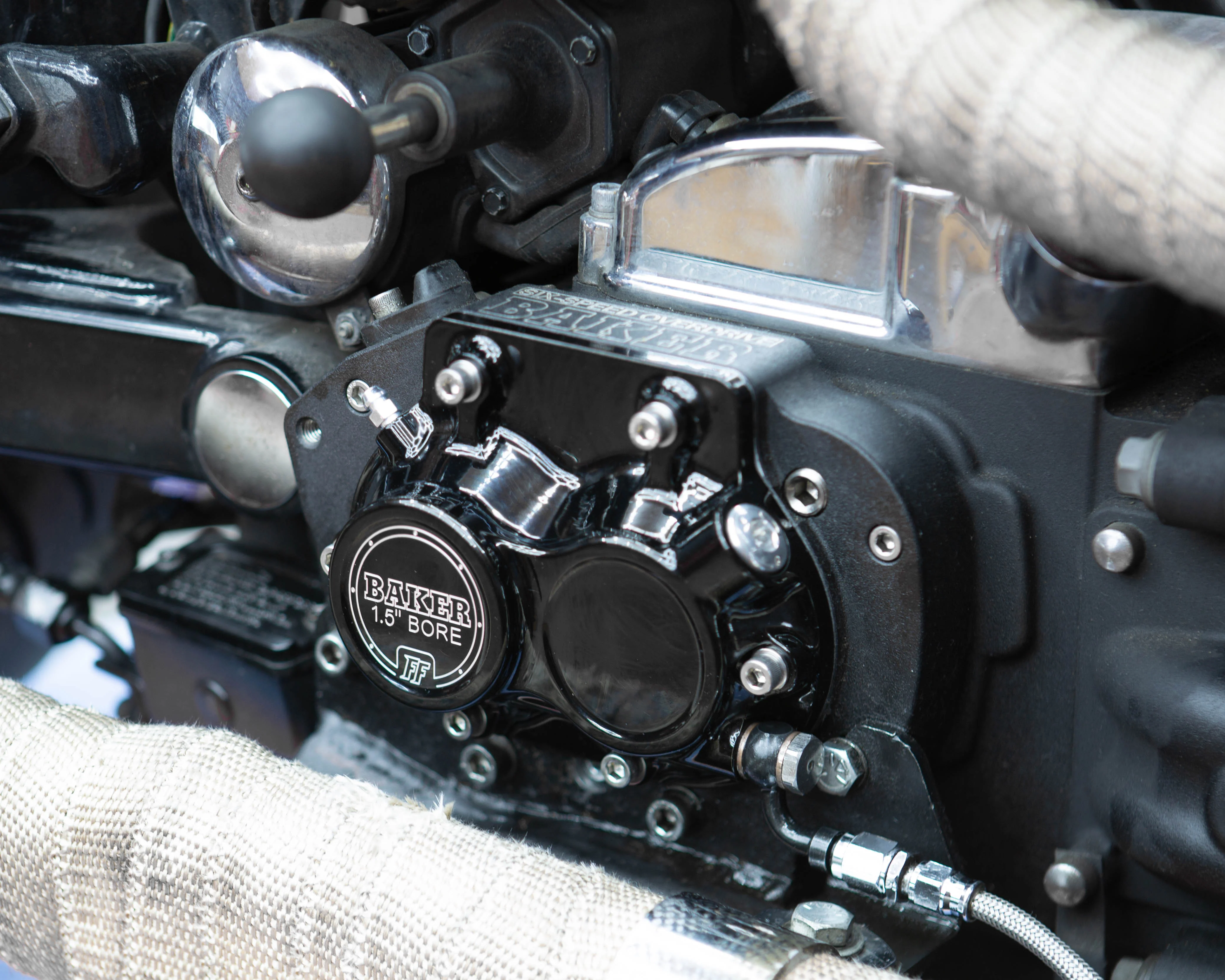

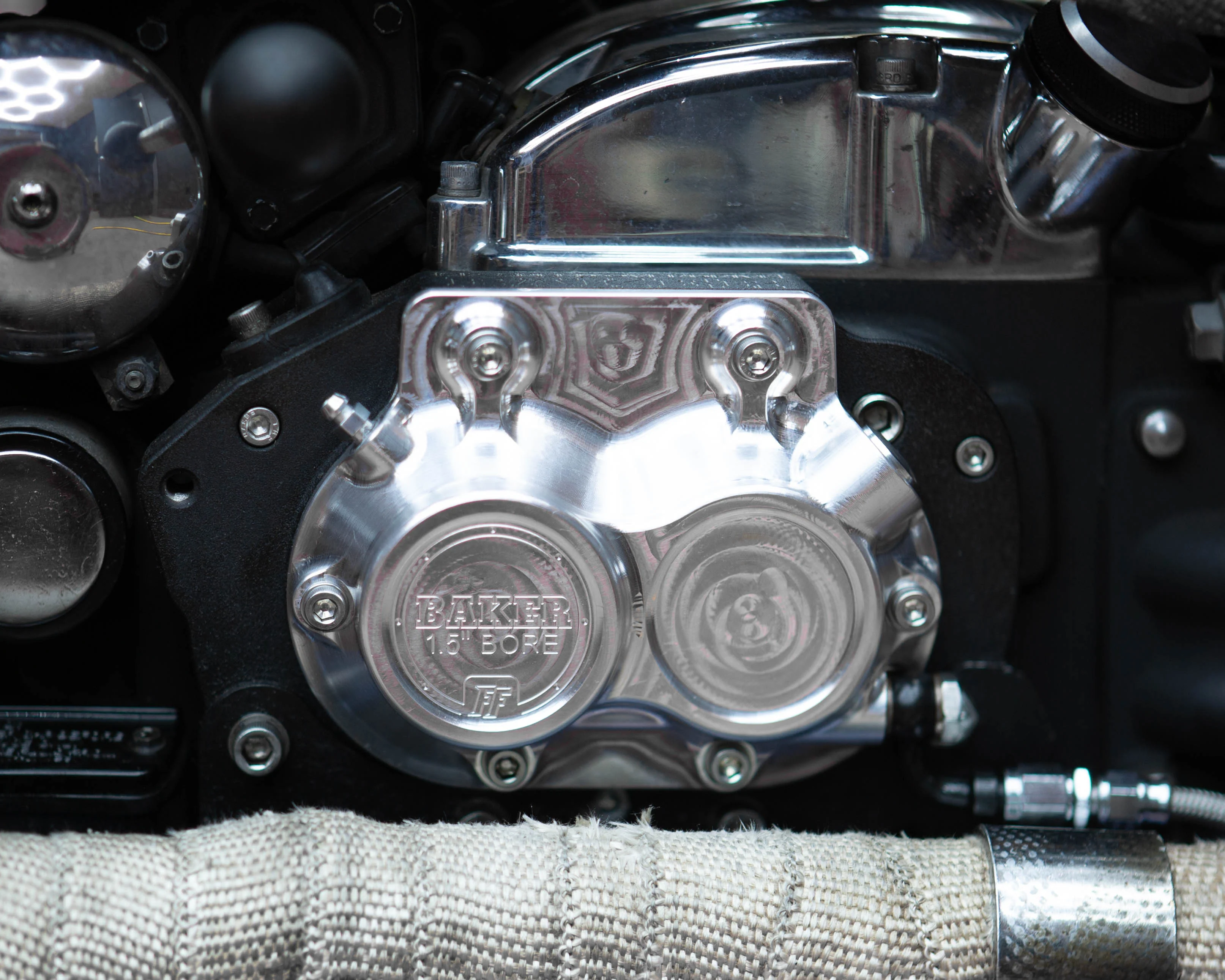

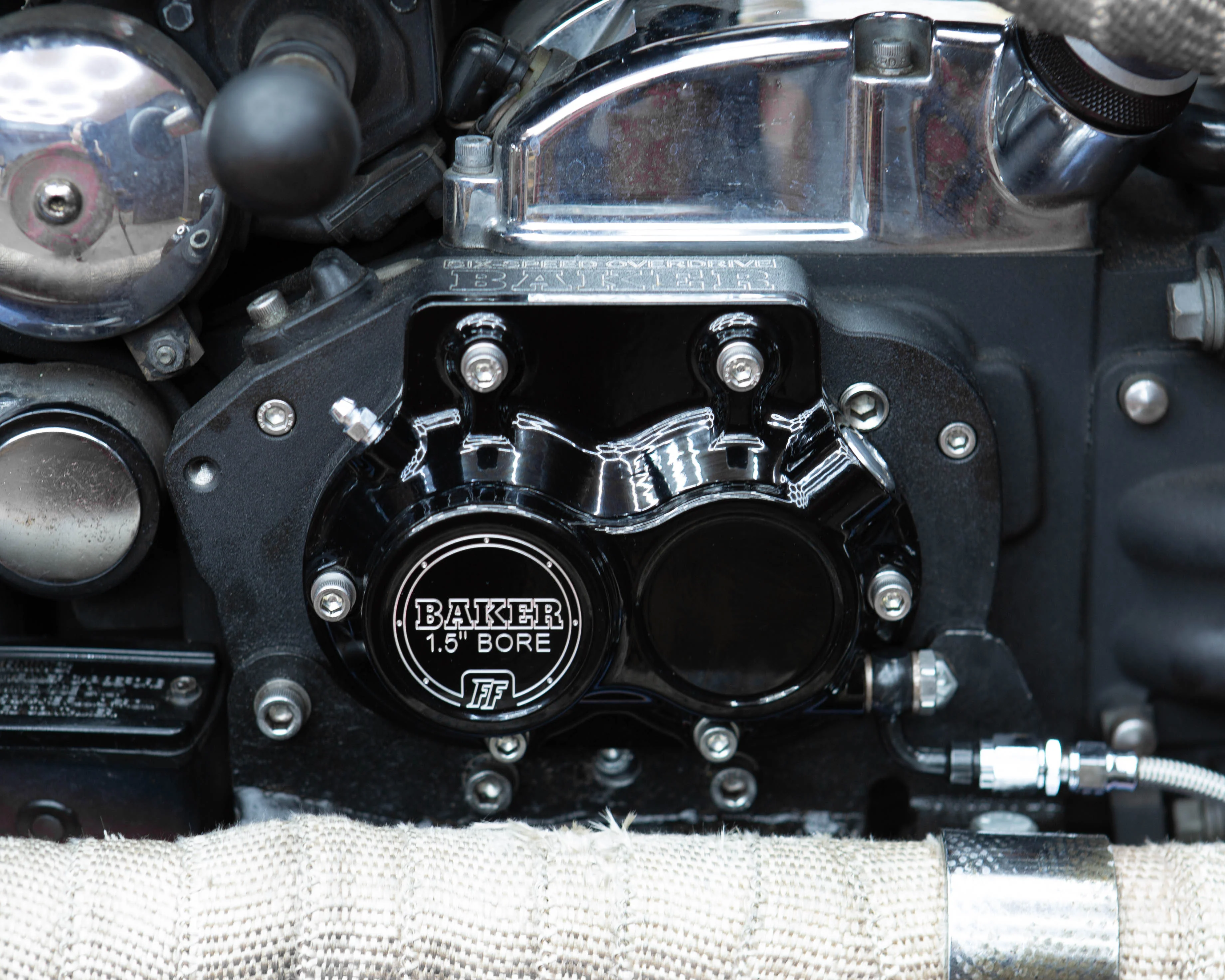

Fitment: 1987-1999 Softail, Dyna, & FXR, 2000-2006 Softail, 2000-2005 Dyna, BAKER DD5, DD6, and OD6. 1993-2006 Touring Models*

*The BAKER Hydraulic Side Covers will fit the 1993-2006 Touring models with the additional purchase of a Drag Specialties Engine Oil Spout Kit. Click here for a direct link to the Drag Specialties Oil Spout kit. Kit requirement is due to interference between the bleeder valve and the existing stock oil spout assembly.



Hydraulic Side Cover, Front Feed, Cutaway Features

Hydraulic Side Cover, Front Feed, Piston Bore Passages



Notes:

• Installation on 1993-2006  FLH/FLT models requires either the stock cast engine oil spout to be trimmed to clear the bleeder screw or installation of the Drag Specialties Engine Oil Spout Kit.
• Banjo Bolt is 3/8-24 thread (provided by customer)  bleeder screw is 1/4-28 thread (included in the kit)
• Designed to work with DOT 5 Brake Fluid
• Designed to work with the stock sized 11/16″ diameter piston clutch lever assembly or an aftermarket equivalent.
• Transmission oil level is checked with the bike on the kick stand, and threading the dipstick into the side cover.

Installation Instructions BAKER LSD FF Hydraulic Side Cover installation instructions with exploded views : Click Here

'17-Up M8 Fitment

The Hydraulic Side Cover Kit for 2017-Later M8 models is finally here! Taking design cues from our ever increasing product family known as Function Formed, we have wrapped the outer design around the functional components found inside. No garnish, or decorations, just the meat and potatoes to make this side cover look as good as it functions.

Our newly designed 28MM piston, in conjunction with supplied mainshaft & countershaft retaining nuts, help alleviate the common fluid transfer issue between the transmission and primary.

Features

• FF aesthetics machined out of billet aircraft grade 6061-T6.
• Low profile external features for maximum exhaust clearance.
• 28MM diameter piston included.
• Large 5/16-24 Bleeder screw for durability
• Compatible with Milwaukee-Eight H-D hydraulic master cylinders.

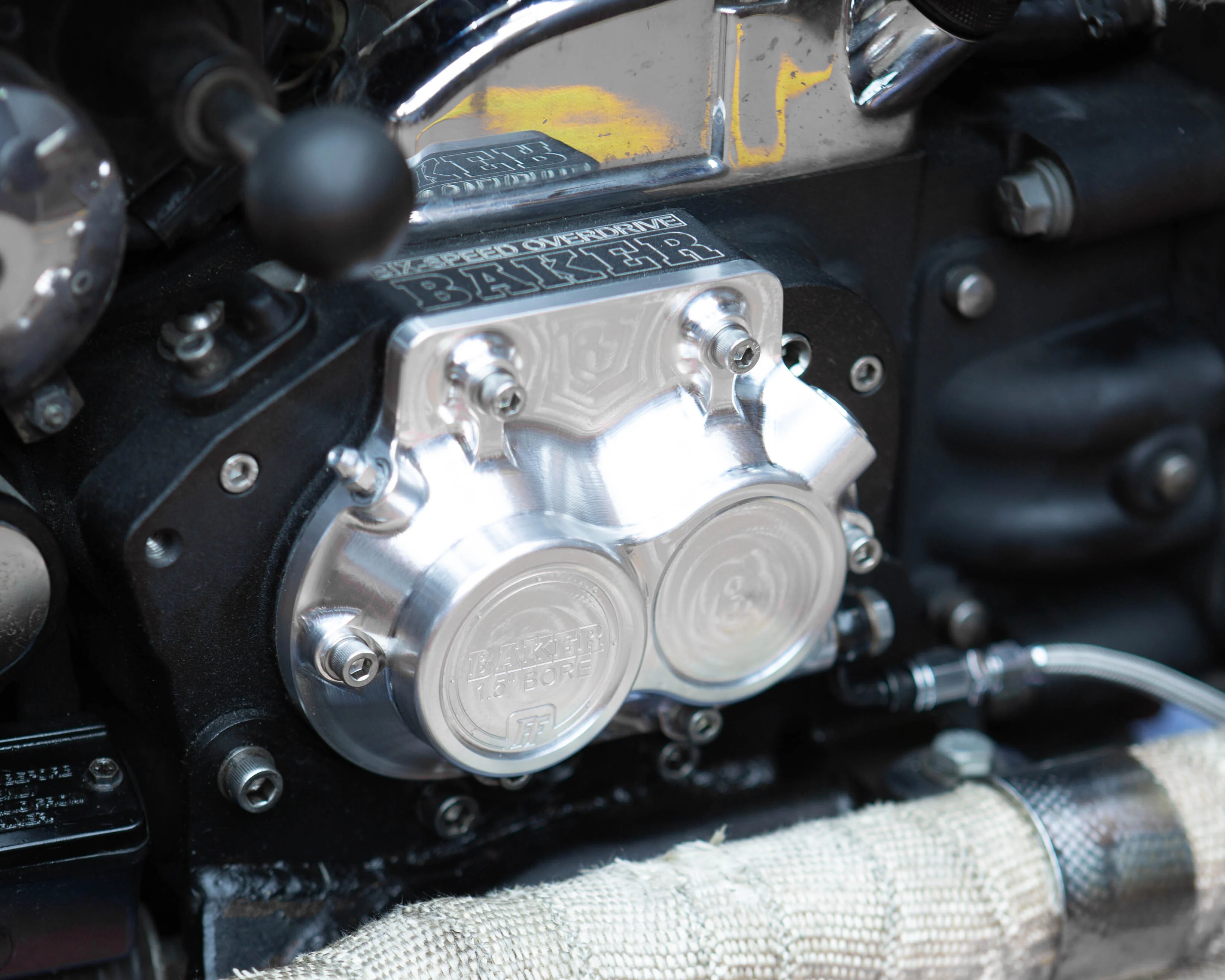

Fitment: 2017-Later M8 BAKER DD7, 2017-Later M8 BAKER GrudgeBox, 2017-Later M8 Stock H-D 6-Speed*

*Does not fit 2023-2025 CVO, 2024-2025 Street Glide, 2024-2025 Road Glide, 2025 Softail

Part Numbers

DD7-10602-A	Function Formed Hydraulic Side Cover Assembly,  Polish, 2006-2017 Dyna, 2007-2017 Softail, 2007-2016 Touring
DD7-10603-A	Function Formed Hydraulic Side Cover Assembly,  Black, 2006-2017 Dyna, 2007-2017 Softail, 2007-2016 Touring
M8-10605-A	Function Formed Hydraulic Side Cover Assembly,  Gloss Black, M8 Models  (Except 2023-2024 CVO, 2024 Street Glide and 2024 Road Glide)
M8-10601-A	Function Formed Hydraulic Side Cover Assembly,  Chrome, M8 Models (Except 2023-2024 CVO, 2024 Street Glide and 2024 Road Glide)
M8-10602-A	Function Formed Hydraulic Side Cover Assembly,  Polish, M8 Models (Except 2023-2024 CVO, 2024 Street Glide and 2024 Road Glide)
M8-10603-A	Function Formed Hydraulic Side Cover Assembly,  Black, M8 Models  (Except 2023-2024 CVO, 2024 Street Glide and 2024 Road Glide)
456-56-A	Function Formed Hydraulic Side Cover, Front Feed, Raw, Stock 5-Speed*, BAKER DD5, BAKER OD6, and BAKER DD6
45605-56-A	Function Formed Hydraulic Side Cover, Front Feed, Gloss Black, Stock 5-Speed*, BAKER DD5, BAKER OD6, and BAKER DD6

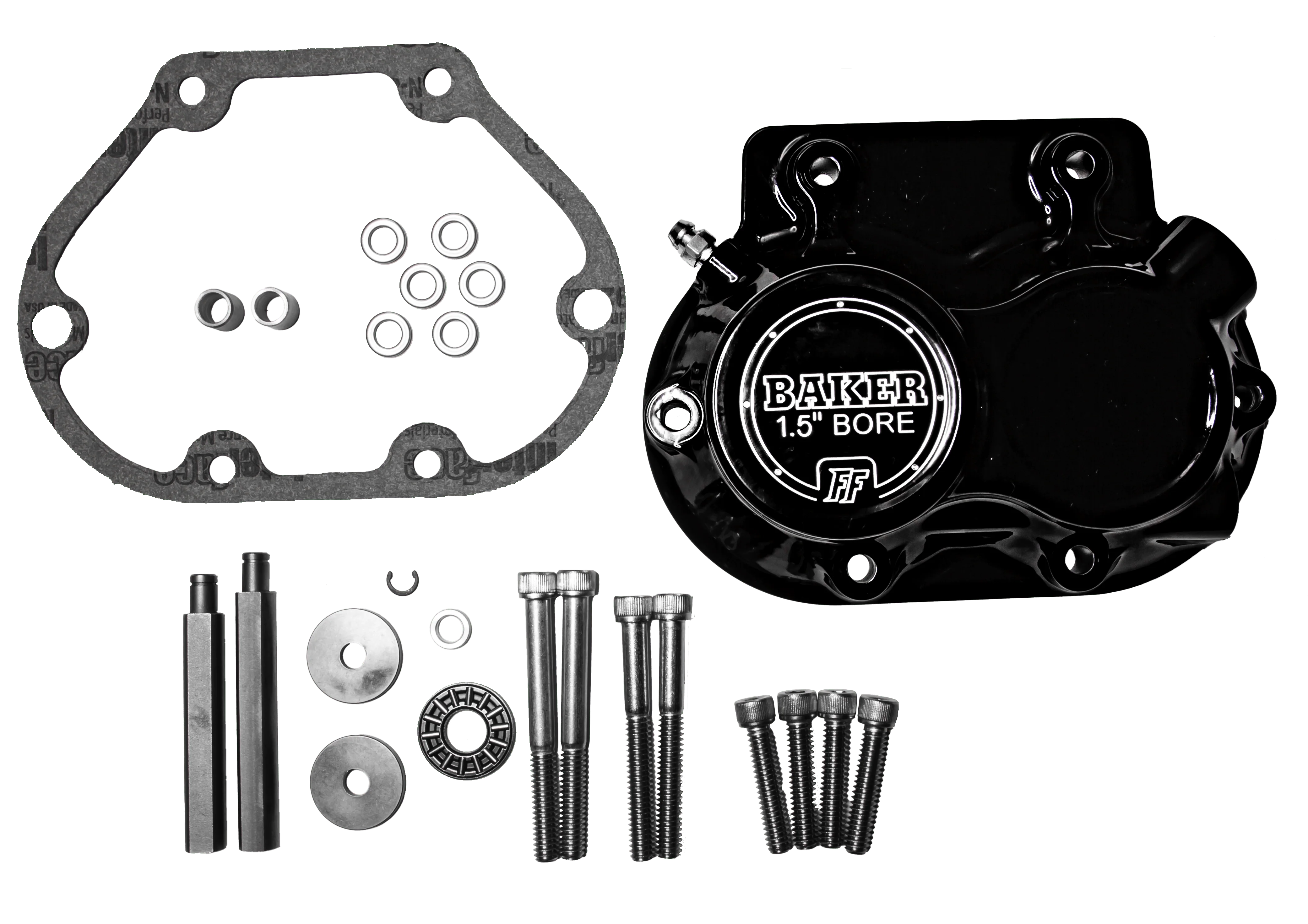

Kit includes:

• Hydraulic Side Cover
• Cover fasteners; Bolts & Washers
• Mainshaft & Countershaft Retaining Nuts
• Actuator Rod with Bearings
• Center Rod, Clutch Adjuster and Plate with Retaining Ring
• Hydraulic Cover Gasket
• Hydraulic Piston Assembly
• Hydraulic Line Adapter

Note: If you're using an aftermarket hydraulic clutch, please contact our sales team prior to ordering, as additional components may be required.

Detail



Note: If you're using an aftermarket hydraulic clutch, please contact our sales team prior to ordering, as additional components may be required.

Installation Instructions BAKER LSD FF Hydraulic Side Cover for 5-Speeds installation instructions with exploded views : Click Here

Installation Instructions for Cruise Drive 6-Speed Hydraulic Side cover: Click Here

Installation Instructions for M8 Hydraulic Side cover: Click Here
